| Type: |

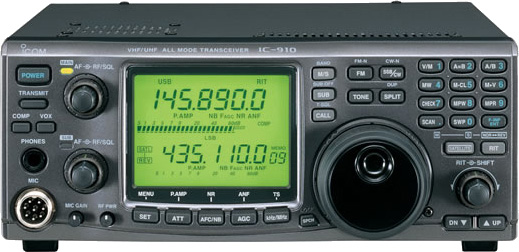

Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 144-146 / 430-440 MHz (Europe)
TX: 144-148 / 440-450 MHz (USA)
TX: 1240-1300 MHz/10 W (with UX-910 option)
RX: 136-174 / 420-480 MHz
RX: 1240-1320 MHz (with UX-910 option) |
| Mode: |
FM/FM-N/SSB/CW |
| RF Power output: |
5-100 / 5-75 W
1-10 W on 23cm (with UX-910 option) |
| Receiver system: |

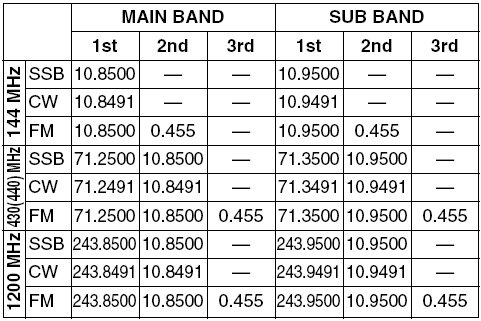

Single- dual- or triple conversion superheterodyne, depending on band and mode
|
| Sensitivity: |
FM: <0.18 uV (12 dB SINAD)
SSB/CW: <0.11 uV (10 dB S/N) |
| Selectivity: |
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
FM-N: 6 KHz (-6 dB), 18 KHz (-60 dB)
SSB/CW: 2.3 KHz (-6 dB), 4.2 KHz (-60 dB)
CW-N: 0.5 KHz (-6 KHz), 1.34 KHz (-60 dB) |
| Image rejection: |
2m/70cm: >60 dB
23cm: >50 dB |
| Voltage: |
13.8 VDC +/-15% |
| Current drain: |
RX: Max 3.5 A (with UX-910)
TX: Max 23 A |
| Impedance: |
50 ohms, SO-239 / N |
| Dimensions (W*H*D): |
241*94*239 mm |
| Weight: |
4.5 Kg (without UX-910) |
| Manufactured: |
Japan, 2000-200x |
| Other: |
212 memories. DSP (UT-106) option. Dual 9K6 packet ports and built-in keyer. Twin RX
New price 2001 in Sweden: 18990:- SEK
New price 2008 in Sweden: 17500:- SEK |
