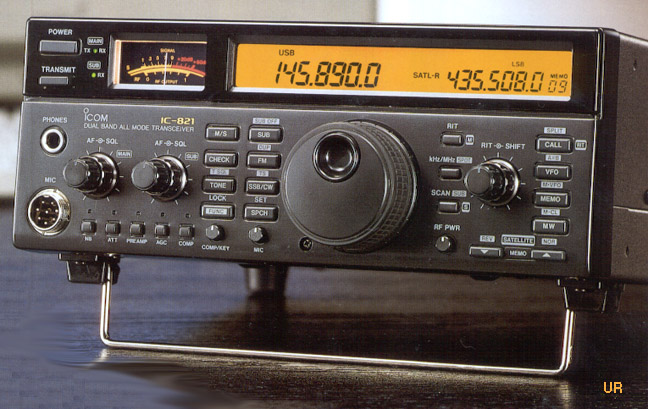

IC-821H



Type: Amateur VHF/UHF transceiver
Frequency range: 144-146/430-440 MHz
Mode: FM/SSB/CW
RF Power output: Max 45/40 W
Receiver system: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: Max 2.5 A
TX: Max 16 A
Impedance: 50 ohms
Dimensions (W*H*D): 241*94*239 mm
Weight: 5 Kg
Manufactured: Japan, 199x-199x (Discontinued)


Icom IC-821H Il Service Manual
