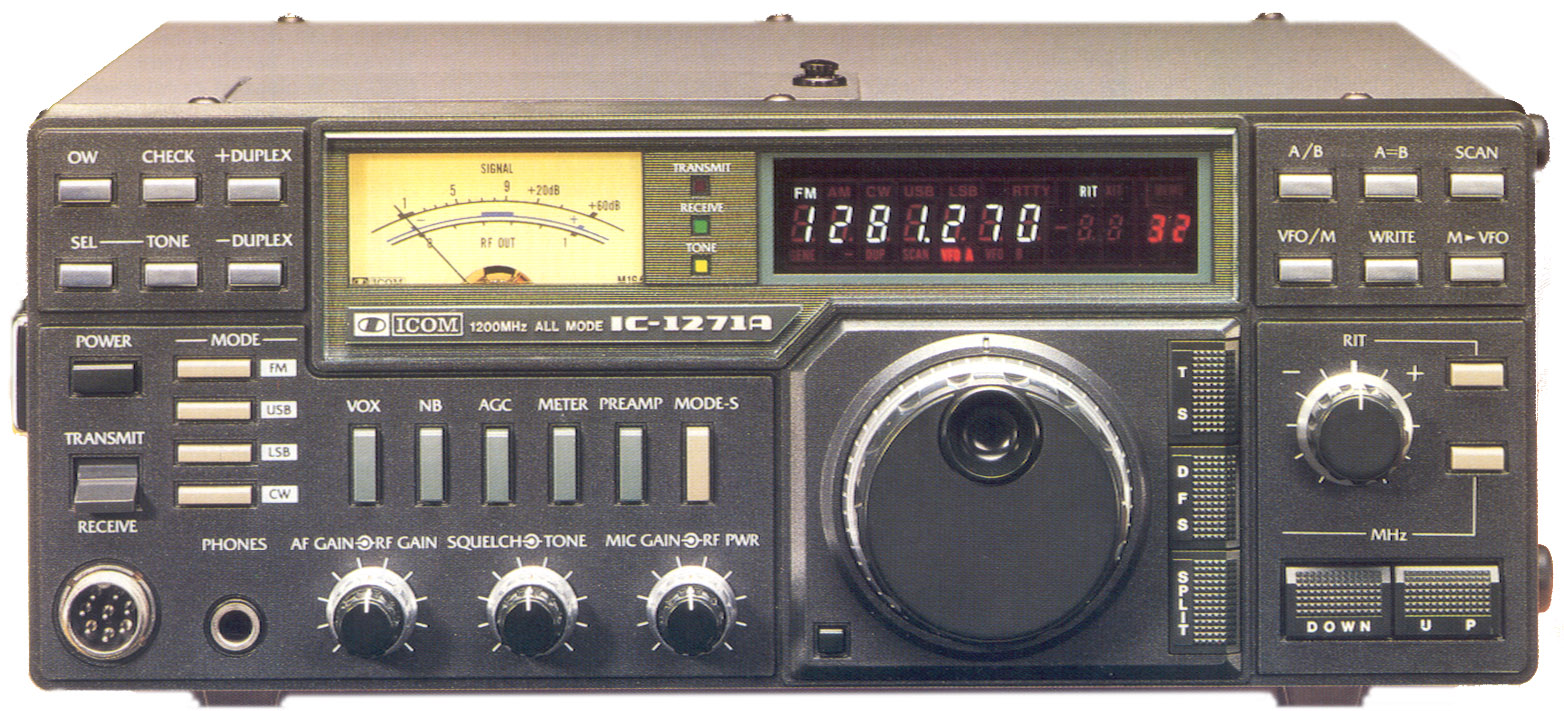

| Type: | Amateur UHF transceiver |
| Frequency range: | 1240-1300 MHz |
| Mode: | FM/SSB/CW |
| RF Power output: | 1-10 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 1.3 A TX: Max 7.5 A |
| Impedance: | 50 ohms, N |
| Dimensions (W*H*D): | 286*111*276 mm |
| Weight: | 7.1 Kg |
| Manufactured: | Japan, 1987-198x (Discontinued) |
| Other: | ATV option |
 IC-1271_service_manual.pdf | 38299 kB |
