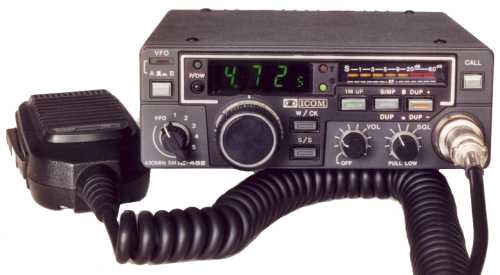

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-440 MHz (5/25 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 10 W Lo: 1 W |
| Sensitivity: | <0.3 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: | >60 dB |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 500-700 mA TX: 1.7-3.5 A |
| Impedance: | 50 ohms, N |
| Dimensions (W*H*D): | 140*50*177 mm |
| Weight: | 1.5 Kg |
| Manufactured: | Japan, 1983-198x (Discontinued) |
| Other: | 5 memories New price october 1985 in Sweden: 4147:- SEK |
 IC-45E_schematic_diagram.pdf | 2891 kB |
| IC-45_user_manual.pdf | 3703 kB |
