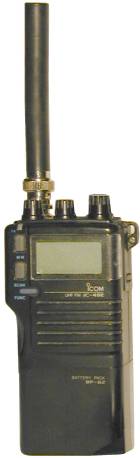

| Type: | Amateur UHF transceiver |
| Frequency range: | 430-440 MHz |
| Mode: | FM |
| RF Power output: | Hi: 5 W Lo1: 3.5 W Lo2: 1.5 W Lo3: 0.5 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 6-16 VDC |
| Current drain: | RX: 19-250 mA TX: Max 1.6 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 49*103*33mm (with BP-82) |
| Weight: | 270 gr (with BP-82) |
| Manufactured: | Japan, 1989-199x (Discontinued) |
| Other: | 48 memories |
 IC-4SA_IC-4SE_user_manual.pdf | 1931 kB |
