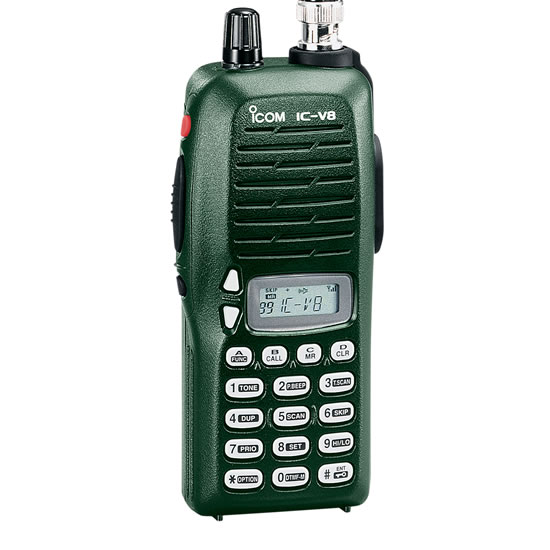

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-148 MHz RX: 136-174 MHz |
| Mode: | FM |
| RF Power output: | Hi: 5.5 W Lo: 0.5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 7.2 VDC |
| Current drain: | RX: 20-250 mA TX: 0.7-2 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 54*132*35 mm |
| Weight: | 350 gr (with antenna and battery) |
| Manufactured: | Japan, 2001-200x |
| Other: | 100 + 7 memories. CTCSS & DCS. Alpha tags. |
| Related documents: | N/A |
 IC-V8_user_manual.pdf | 1194 kB |
