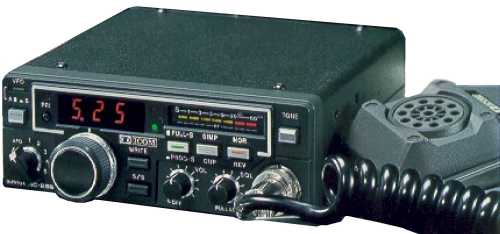

| Type: | Amateur VHF transceiver |
| Frequency range: | 143.8-148.2 MHz (5/15 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 25 W Lo: 1 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 600 mA TX: Max 4.8 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*50*177 mm |
| Weight: | 1.5 Kg |
| Manufactured: | Japan, 1981-198x (Discontinued) |
| Other: | 5 memories |
 IC-25_user_manual.pdf | 4271 kB |
