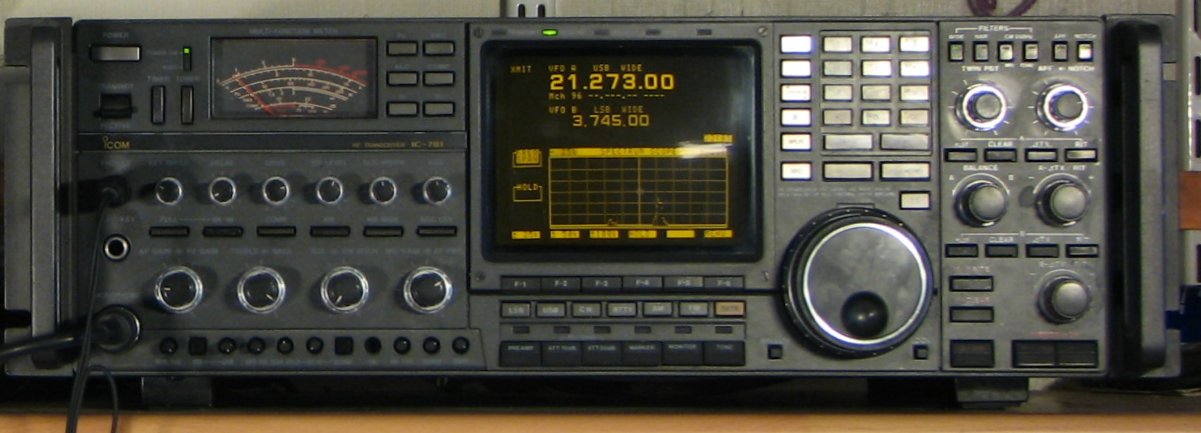

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.1-30 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | 15-150 W (AM 8-75 W) |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | Mains |
| Current drain: | RX: ? A TX: Max ? A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 429*168*439 mm |
| Weight: | 23 Kg |
| Manufactured: | Japan, 1987-1993 (Discontinued) |
| Other: | Spectrum scope Built-in keyer and AT. Twin RX New price 1988 in Sweden: 46500:- SEK |
 IC-781_manuale_utente_italiano.pdf | 6685 kB |
| IC-781_service_manual.pdf | 39172 kB |
| IC-781_user_manual.pdf | 6642 kB |
