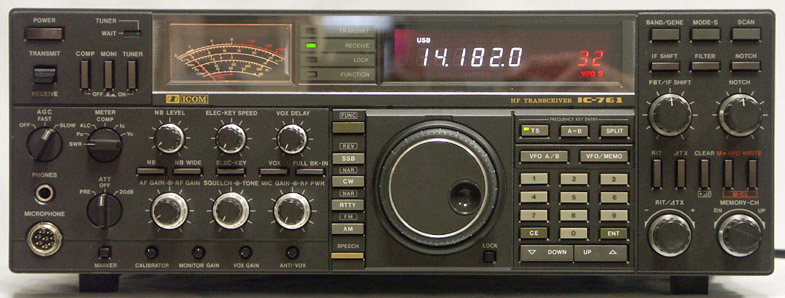

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.1-30 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | 10-100 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: ? mA TX: Max ? A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 424*150*390 mm |
| Weight: | ? Kg |
| Manufactured: | Japan, 1987-1989 (Discontinued) |
| Other: | Built-in auto-AT. RS-232C New price 1988 in Sweden: 26950:- SEK |
 IC-761_service_manual.pdf | 36810 kB |
| IC-761_user_manual.pdf | 5542 kB |
