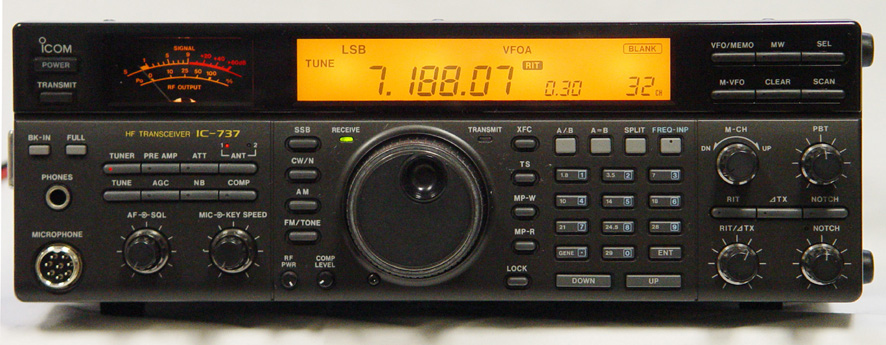

| Type: | Amateur HF transceiver |
| Frequency range: | TX: 10-160 m + WARC RX: 0.03-30 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | 10-100 W (AM 4-40 W) |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: ? A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 330*111*285 mm |
| Weight: | 8 Kg |
| Manufactured: | Japan, 1993-199x (Discontinued) |
| Other: | Built-in keyer New price 1993 in Sweden: 17500:- SEK |
 IC-737A_service_manual.pdf | 24634 kB |
| IC-737A_user_manual.pdf | 5724 kB |
