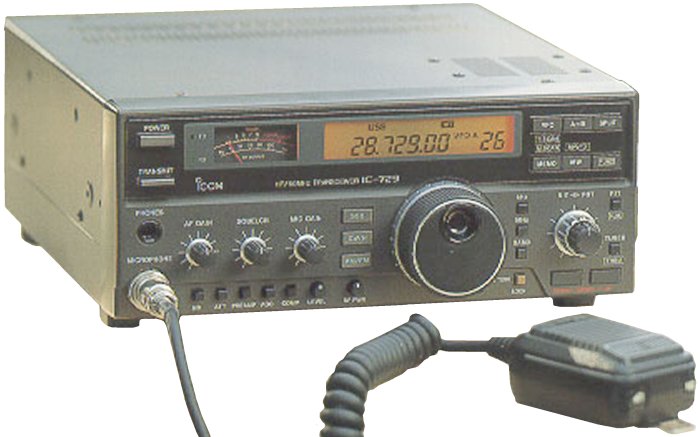

| Type: | Amateur HF/VHF transceiver |
| Frequency range: | TX: 10-160 m + WARC / 50-54 MHz RX: 0.5-30 / 46.2-61.1 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | 10-100 / 1-10 W (AM 10-40/1-4 W) |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 241*94*239 mm |
| Weight: | 4.6 Kg |
| Manufactured: | Japan, 1992-199x (Discontinued) |
| Other: | New price 1992 in Sweden: 11130:- SEK |
 IC-728_729_user_manual.pdf | 5816 kB |
| IC-729_service_manual.pdf | 14140 kB |
