Ricetrasmettitore di mentalità cinese, economico e basso contenuto di elettronica, dual band. Doppio pulsante PTT. Ogni pulsante può essere abbinato ad una banda di frequenza VHF/UHF.
CON DOPPIO PULSANTE PTT , puoi facilmente e velocemente trasmettere sulle due frequenze selezionate scegliendo il ptt A o il ptt B
VHF/ UHF DUAL-BAND 136-174 / 400-520 Mhz
5W
Attacco per microfoni e cavi di programmazione : Kenwood Plug type
Attacco Antenna : SMA-Female (SMA Femmina / SMA-F)
Altre caratteristiche:
• Frequency Range: 136-174 & 400-520MHz
• Dual Band, Dual Display, Dual Frequency,Dual Standby
• A/B band independent operation
• 128 groups channels storage
• Shortcut menu operation mode
• VFO & Memory channels scan
• Emergency Alarm
• Tri-color background light selectable
• 0~9 grades VOX selectable
• PTT & ANI ID
• FM radio and 25 stations storage (65.0 MHz – 108.0 MHz)
• 1750Hz Brust
• Tone Time-out Timer
• Channel Monitor
• Battery Saver
• Keypad Lock
• Channel Step: 2.5/5/6.25/10/12.5/25KHz
• Low Battery Alert
• ROGER SET
• Emergency Alert
• 25KHz/12.5KHz Switchable
• FM Radio (65.0MHz-108.0MHz)
• Large LCD Display
• LED Flashlight
• Hight /Low RF Power Switchable
• Voice companding
• 50 CTCSS/ 104DCS coder & tone searching
• dual standby
• PC programmable
• Wide/Narrow Band(25kHz/12.5kHz)
• Transmitter time-out timer(TOT)
• High/Low TX power selectable
• Busy channel lock-out(BCLO)
Specifiche:
Frequency Range: VHF 136-174 MHz (Rx/Tx). UHF 400-520MHz (Rx/Tx);
65MHz ~ 108MHz (Only commercial FM radio reception)
Memory channels: 128 channels
Frequency stability: ±2.5ppm
Frequency step: 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/20KHz/25KHz
Antenna: impedance 50? (High gain DualBand antenna) (SMA -Female)
Operating temperature: -20°C to +50°C
Supply voltage: Rechargeable Lithium-ion 7.4V/1800mAh
Mode of Operation: Simple or semi-duplex
RF power: 5W/1W
Modulation Mode: 16kΦF3E / 11kΦF3E
Maximum deviation: ≤5kHz / ≤ 2.5kHz
Spurious Radiation: ≤ 7.5μW
Adjacent Ch. Power: ≤-65dB(Wide) / ≤-60dB(Narrow)
CTCSS/DCS deviation: 0.7±0.1kHz / 0.4±0.1kHz
Intermediation sensitivity: 8-12mv
Size: 130 x 60 x 30 mm / 5.12 x 2.36 x 1.18 inch
Color: black
Net Weight: 239 g / 8.43 oz
Contenuto della confezione:

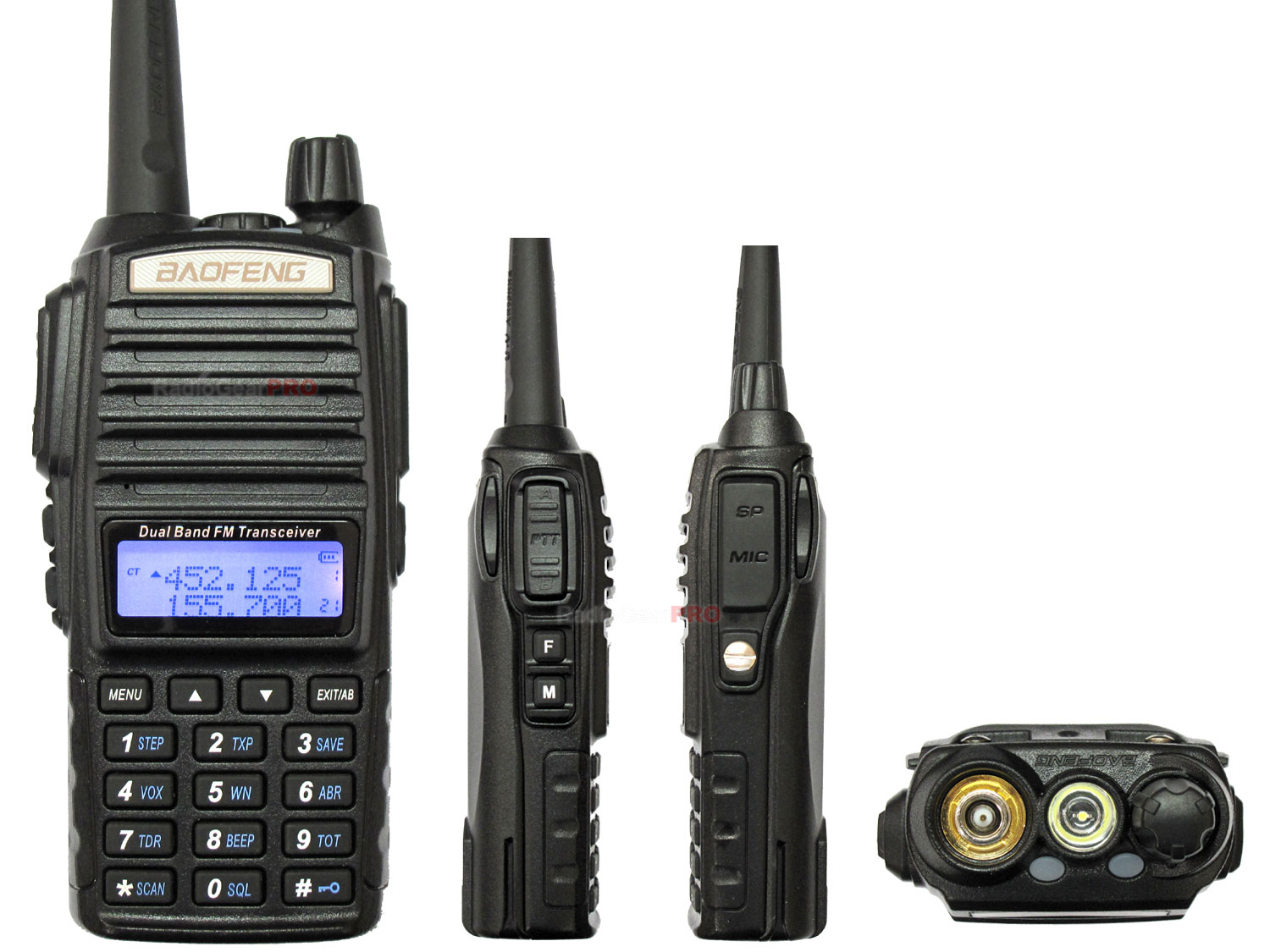

1x Radio BAOFENG UV-82 Dual Band FM
1x Batteria 7.4V/1800mAh BL-8
1x Antenna
1x Alimentatore
1x Vaschetta di alimentazione
1x Clip da cintura
1x Laccetto
1x Manuale Inglese
1x Microfono Auricolare con Doppio PTT
 UV82_Manual.pdf | 6768 kB |
