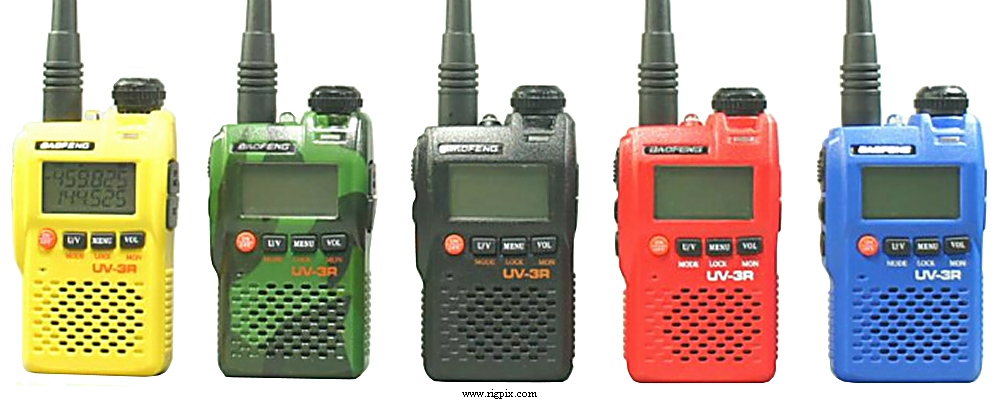

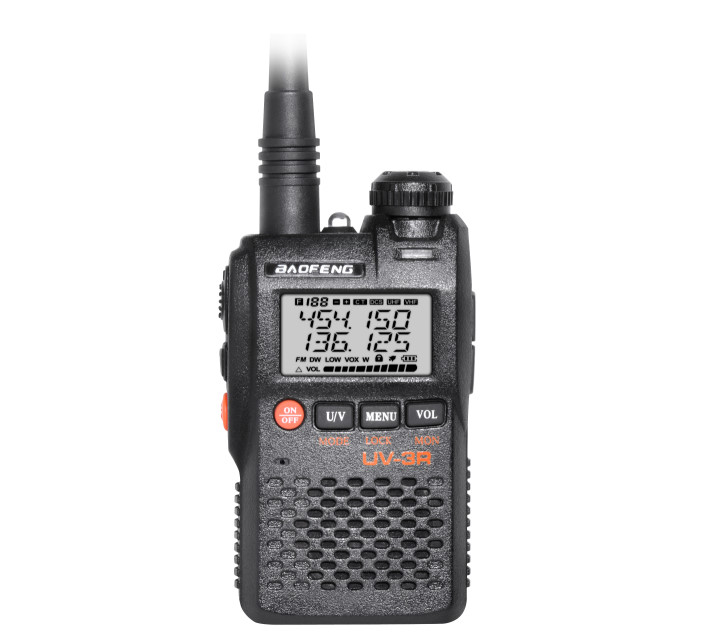

Ricetrasmettitore TASCABILE bibanda, potenza reale 2 watt, VHF - UHF
venduto anche come VERO UV-3R , ZASTONE ZT-UV3R, CHUANOI CQ-UV3R
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 136-174 / 430-470 MHz RX: 87-108 / 136-174 / 430-470 MHz (5 / 6.25 / 12.5 / 25 KHz steps) |
| Mode: | TX: FM (+/-5 KHz deviation) / NFM (+/-2.5 KHz deviation) RX: FM / NFM / WFM |
| RF Power output: | Hi: 2/2 W Lo: 1/1 W? |
| Receiver system: | N/A |
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 3.7 VDC (1500 mAh standard NP60 Li-Ion battery) |
| Current drain: | RX: 75-400 mA TX: Max 1.4 A |
| Impedance: | 50 ohms, SMA female |
| Dimensions (W*H*D): | 47*81*23 mm |
| Weight: | 130 gr |
| Manufactured: | China, 2011-20xx |
| Other: | 99+1 memories. CTCSS/CDCSS. 1750 Hz tone burst. VOX. LED flashlight. Twin RX New price 2011 in China: $46.00 |
 chip_rda1846.pdf | 595 kB |
| eeprom_nm24c16.pdf | 105 kB |
| fm_broadcast_tuner_chip_rda5802e.pdf | 688 kB |
| RDA1846_Programming_manual.pdf | 547 kB |
| UV-3R Mark II - User Manual | 7309 kB |
| UV-3R_FAQ_2011-12-22.pdf | 578 kB |
