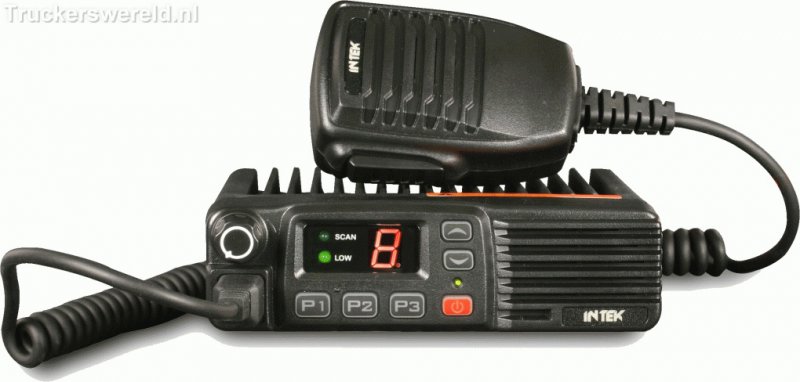

MX-8000U MX-8000V MX-8000



mx-8000v-vhf-mobilofoon

- 8 Canali programmabili
- Versione VHF 136-174 Mhz (MX8000V)
- Versione UHF 438-490 Mhz (MX8000V)
- Potenza regolabile da 5 - 25 W
- 38 Toni Subaudio CTCSS 83 DCS (Encoder-Decoder)
- Chiemate Selettive DTMF/ 2 Toni
- Scan Canali
- Regolazione Potenza HI-Low
- Protezione con Password
- Regolazione soglia livello SQ
- 5 Funzioni programmabili (senza cavo prog.)
- Led dual color RX-TX
- Funzionamento 13,6 V
- Dimenzioni L150 x H 53 x D 130 mm



Professional mobile transceivers, rugged construction with diecast aluminum chassis.
25W RF transmitter, 8 channels, 38 CTCSS and 83 DCS tones.
Fully programmable by PC (with optional programming kit).
LED Display, five user programmable keys, selective calls DTMF/2-Tone, Scan, Emergency Alarm, Remote Kill, Public Address, Busy Channel Lockout,
Time-Out-Timer, Password Protection, selectable Squelch level.
Programmable RF output power range 5W to 25W. Compact cabinet, size mm150x53x130.
8 channels

Main features :

  • 8 channels programmable
  • Frequency Range 438-490 MHz (MX-8000U)
  • Adjustable transmitter RF power in the 5W-25W range
  • 38 CTCSS tones (Encoder/Decoder) / 83 DCS tones (Encoder/Decoder)
  • Selective calls DTMF/2-Tone
  • Busy Channel Lockout / TOT (Time-Out-Timer)
  • Emergency Alarm / Lone Worker / Security Check Channel Scan
  • Hi-Low Power Selection
  • Monitor Function
  • Public Address
  • Remote Kill
  • Password Protection
  • Adjustable Squelch Level
  • Five quick access function programmable keys
  • All functions are PC programmable (with optional programming kit)
  • Dual color RX/TX LED indicator
  • Power Supply : 13.6 VDC
  • Operating temperature -25/+55°C
  • Dimensions : L 150 x H 53 x D 130 mm
  • Weight : gr. 1030
    		•
    Allegati:
    Scarica questo file (MX-8000-V-U_user_manual.pdf)MX-8000-V-U_user_manual.pdf1114 kB
