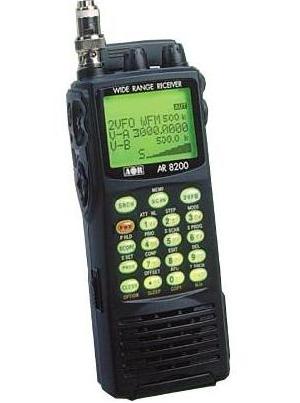

ricevitore scanner portatile
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: | 0.1-3000 MHz |
| Mode: | AM/NAM/WAM/NFM/SFM/WFM/SSB/CW |
| Sensitivity: | AM (10 dB S/N) 0.53-2 MHz: 3.5 uV 2-30 MHz: 2.5 uV 30-470 MHz: 1.5 uV NFM (12 dB SINAD) 30-470 MHz: 0.85 uV 470-1040 MHz: 0.9 uV 1040-2040 MHz: 9 uV 2040-3000 MHz: 25 uV WFM (12 dB SINAD) 30-470 MHz: 1.5 uV |
| Selectivity: | SSB/NAM 3 KHz (-6 dB), 9 KHz (-60 dB) AM/SFM 9 KHz (-6 dB), 20 KHz (-40 dB) WAM/NFM 12 KHz (-6 dB), 25 KHz (-40 dB) WFM 150 HKz (-3 dB), 360 KHz (-20 dB) |
| Image rejection: | N/A |
| Voltage: | 4.8-6 VDC (4*R6/AA) or 12 VDC external |
| Current drain: | 25-190 mA |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 61*143*39 mm |
| Weight: | 217 gr (without batteries and antenna) |
| Manufactured: | 200x-200x |
| Other: | 1000 channels in 20 banks. TXCO. MW bar aerial. RF preselection of mid VHF bands. Band scope. Noise limiter. RS-232C. Optional slot cards include EM8200 (extra memory), CT8200 (CTCSS), RU8200 (20 sec recorder), TE8200 (tone eliminator), VI8200 (voice inverter) |
 AOR_AR8200Mark3_user_manual.pdf | 1101 kB |
 AOR_AR8200_mod.zip | 90 kB |
| AOR_AR8200_schematic.pdf | 379 kB |
| AOR_AR8200_user_manual.pdf | 1909 kB |
| AR-8200MK - User Manual | 1162 kB |
