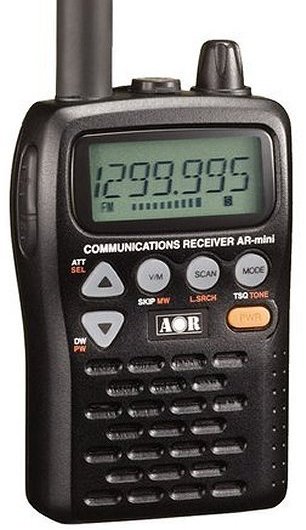

ricevitore scanner portatile
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: | 0.1-1300 MHz (Cellular blocked in the US) (5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz steps) |
| Mode: | AM/FM/WFM |
| Receiver system: | Dual conversion superheterodyne (WFM) Triple conversion superheterodyne (AM/FM) IF: 243.95 MHz, 21.7 MHz, 450 KHz |
| Sensitivity: | AM (10 dB S/N) 0.2-5 MHz: 1.3 uV 5-520 MHz: 0.6 uV 520-1300 MHz: 0.7 uV FM (12 dB SINAD) 5-370 MHz: 0.2 uV 370-520 MHz: 0.28 uV 520-1300 MHz: 0.35 uV WFM (12 dB SINAD) 5-160 MHz: 0.9 uV 160-370 MHz: 0.8 uV 370-1300 MHz: 1 uV |
| Selectivity: | AM/FM: 15 KHz (-6 dB) WFM: 110 KHz (-6 dB) |
| Image rejection: | N/A |
| Voltage: | 2.4-3 VDC (2*R6/AA) or 6 VDC external |
| Current drain: | 20-150 mA |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 60*95*24 mm |
| Weight: | 210 gr (with antenna and batteries) |
| Manufactured: | 2008-200x |
| Other: | 1000 memories in 10 banks. CTCSS/DCS. Water resistant (JIS4) Voice inverter descrambler (not in US version). Bug detector. PC-programmable. |
 AR-mini_data_sheet.pdf | 2567 kB |
| AR-Mini_driver_install_guide.pdf | 750 kB |
| AR-mini_integrazione_manuale.pdf | 42 kB |
| AR-mini_manuale_italiano.pdf | 5236 kB |
 AR-Mini_programming_tool.zip | 7734 kB |
