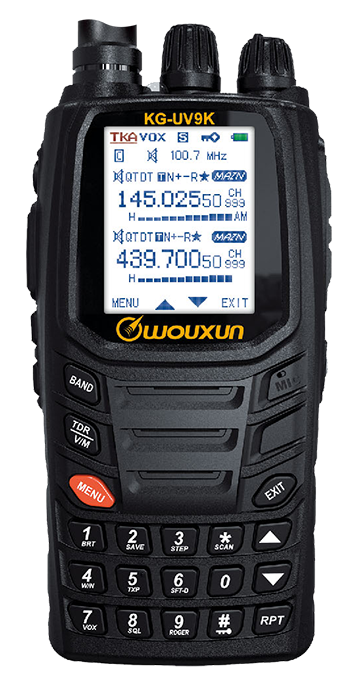

Wouxun KG-UV9K

WOUXUN KG-UV9K - RTX BIBANDA FULL DUPLEX 144/430 MHZ RX 76-985 MHZ con funzionalità REPEATER

Sostanzialmente un restayling del Wouxun KG-UV9D Plus con l'aggiunta di step di 8,33 Khz - Qui il manuale in pdf

UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W

TX: 136-174MHZ(FM) - 400-512MHZ(FM)
RX: 76-108MHZ(FM)
             108-136MHZ(air ground)
             136-180MHZ(FM)
             230-250MHZ(FM)
             350-400MHZ(FM)
             400-512MHZ(FM)
             700-985MHZ(FM)

• 7 Bands Reception and Dual Bands Transmission
• Larger Color Screen and Innovative Design
• Dual Receiving
• Channel Groups Scanning
• Memory Channels 999
• QT/DQT Encoding/Decoding,QT/DQT Scan
• Non-Standard CTCSS can be set arbitrarily
• Reverse Frequency
• mplitude-frequency PTT settings
• ncoming Message Display Caller ID display
• DTMF Encoding and Decoding
• All Calls,Group Calls And Selective Calls

- Large Color Screen
- Completely turn off display screen background light
- Completely trun off flickering indicator light
- Dual Receiving
- Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
- RX on the same/different bands of A&B areas simultaneously
- Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
- Channel Groups Scanning
- Memory Channels 999
- QT/DQT Encoding/Decoding,QT/DQT Scan
- Non-Standard CTCSS can be set arbitrarily
- VOX and SOS function
- Reverse Frequency

- mplitude-frequency PTT settings
- ncoming Message Display Caller ID display
- DTMF Encoding&Decoding
- All Calls,Group Calls And Selective Calls
- PriorRemote Alarmity Scan Function
- Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
- Voice Guide:Chinese/English
- Chinese/English Screen Display
- English Channel Name Edit
- Bright Flashlight illumination
- Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
- Stopwatch
-  Multi Definition for Sidekeys
