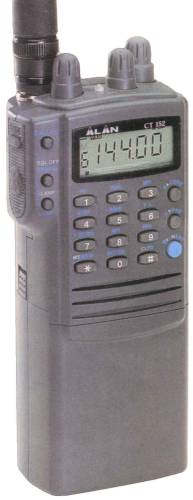

Type: | Amateur VHF transceiver |
Frequency range: | TX: 144-146 MHz (130-175 MHz) RX: 58-175 MHz |
Mode: | TX: FM RX: AM/FM |
RF Power output: | Hi: 5 W Mid: 2.5 W Lo: 0.35 W |
Receiver system: | N/A |
Sensitivity: | 0.5 uV (15 dB S/N) |
Selectivity: | N/A |
Image rejection: | N/A |
Voltage: | 5-16 VDC |
Current drain: | RX: 12-? mA TX: Max 1.3 A |
Impedance: | 50 ohms, BNC |
Dimensions (W*H*D): | 48*68*30 mm (battery excluded) |
Weight: | 180 gr (without battery and antenna) |
Manufactured: | 199x-199x |
Other: | VOX, CTCSS |
