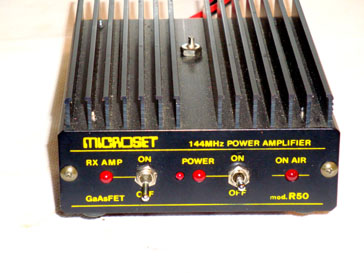

Microset R50 - VHF amplifiers 144-148 MHz

Potenza di uscita: 50W ± 1 dB (con 13,5V ed ingresso 5W)
Ingresso: 1/5W,
Preamplificatore Rx GaAS FET, 18-25db
Alimentazione 13,5 Volt 5A
Dimensioni: 50 x 105 x 170
Peso:580 gr.

Superb line of solid state linear amplifiers.
High quality components and design technology. Excellent linearity and a very reliable professional achievment. Because of the particular construction, usage can be employed in many ways.
They adapt splendidly for use with portable and vehicle transceiver and fixed base station equipment, increment in transmission and reception for two meters band. All models include an efficient low noise pre-amplifier with possibility of exclusion.
Hermetically sealed transmit and receive switching relay with low loss insertion. Class AB, excellent linearity in SSB, and possible PTT command on model SR100.
Strong and elegant with functional box in aluminium oxide.

VHF linear amplifier whit low noisw GaAs fet preamplifier
Frequency: 144 - 148 MHz 140 - 150 MHz limit

MODEL	INPUT W	OUTPUT W	POWER GAIN	PRE. GAIN W	POWER D.C. 13,5V	SIZE HxWxD mm	WEIGHT gr
R 25^*	0,8 - 4	30 ± 1 dB	9 dB	18 dB	3 A	50 x 105 x 170	580
R 50^*	1 - 7	50 ± 1 dB	10 dB	18 dB	5 A	50 x 105 x 170	580
R 45^*	3 - 15	45 ± 1 dB	6,5 dB	18 dB	5 A	50 x 105 x 170	590
SR 100^*	4 - 25	100 ± 1 dB	9 dB	18 dB	12 A	50 x 105 x 220	750
SR 200^*	10 - 50	200 ± 1 dB	9 dB	18 dB	23 A	60 x 180 x 280	2100

Allegati:
Microset R50 - manuale italiano e schema	956 kB
