sdr Soft66AD

Oggi mi sono lasciato tentare ed ho acquistato questo ricevitore SDR. Dovrà essermi spedito dal Giappone: Segnalerò le impressioni sull'utilizzo.



Fearture

  • 2.5MHz to 30MHz Receiving

  • compatible with Rocky , SDRadio, Winrad

  • USB control from PC(XP and Vista)

Soft66AD is new designed Software Radio front end. It is easy to connect to your PC and receive HF band. For amature radio user and BCL, Soft66AD is very usefull receiver.

INSTALATION


  1. install FTDI driver from here

  2. install control soft from here* or alpha.

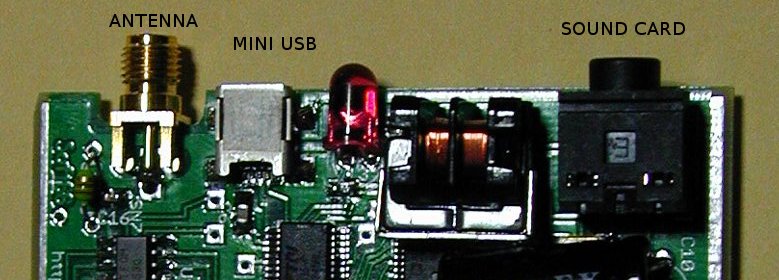

  3. Plug MINI USB cable with your PC.

  4. Plug stereo jack into sound card LINE IN.

  5. connect to antenna with SMA jack.

  6. Raunch SDRadio or Rocky.


*if you fails install control soft, you should install NET Framework.

Allegati:
Scarica questo file (ADcontrol_01.rar)control soft186 kB
Scarica questo file (CDM 2.04.16.rar)FTDI driver1768 kB
Scarica questo file (CDM 2.06.00 WHQL Certified.zip)CDM 2.06.00 WHQL Certified.zip876 kB
Scarica questo file (G8JCFSDR.rar)G8JCFSDR.rar1512 kB

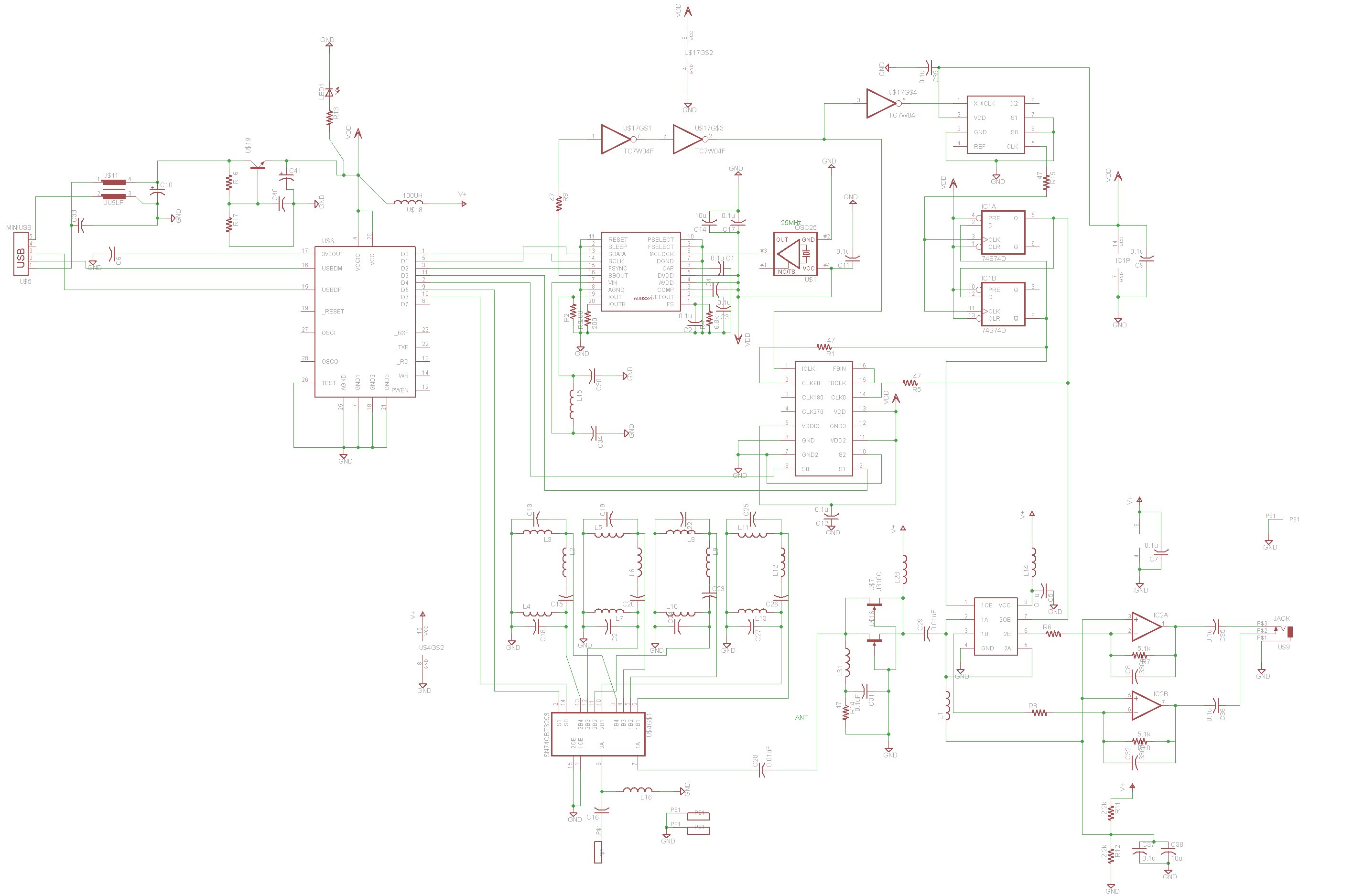

Scarica questo file (Soft66AD-Schema.JPG)Soft66AD-Schema297 kB
Scarica questo file (soft66adh_0.zip)soft66adh_0.zip1145 kB
Scarica questo file (soft66ad_make.pdf)soft66ad_make.pdf4864 kB
Scarica questo file (soft66ad_make2.pdf)soft66ad_make2.pdf59 kB
