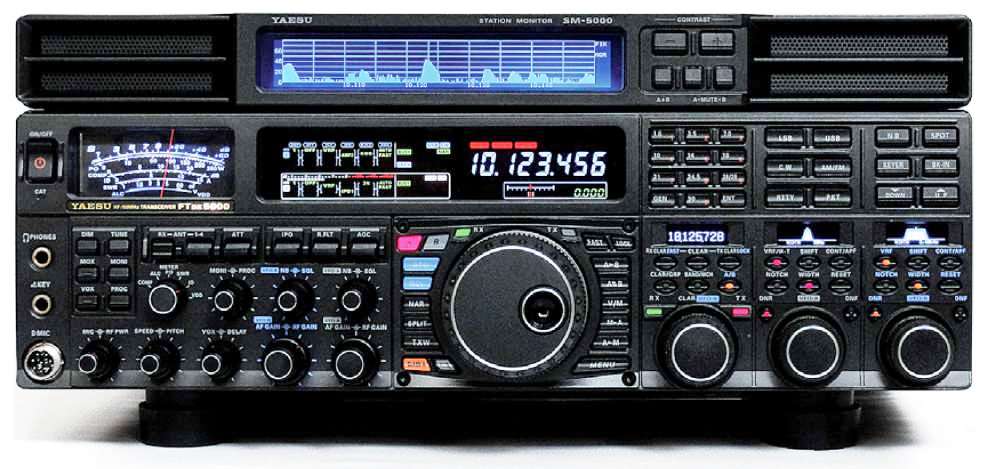

FT-DX5000

Ricetrasmettitore HF/50MHz, 200 W, completo di roofing filter 300 Hz, uscita IF, affidabile e robusta questa radio è stata costruita con componenti di altissima qualità per durare nel tempo. Alimentatore entro contenuto a 220 VAC, accordatore d'antenna automatico.









Type: Amateur HF/VHF transceiver
Frequency range: TX: 10-160 m + WARC / 6 m
RX: 0.03-60 MHz
(1 / 5 / 10 / 100 Hz steps)
Mode: AM/FM/SSB/CW/RTTY/Packet
RF Power output: 10-200/10-200 W (AM: 5-50/5-50 W)
Receiver system: Double conversion superheterodyne (VFO-A)
1st IF: 9 MHz
2nd IF: 30 KHz (24 KHz for AM/FM)
Sensitivity: SSB/CW (10 dB S/N)
0.5-1.8 MHz: 2 uV
1.8-30 MHz: 0.2 uV
50-54 MHz: 0.125 uV
AM (6 KHz BW, 10 dB S/N)
0.5-1.8 MHz: 3.2 uV
1.8-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.35 uV
Selectivity: AM: 6 KHz (-6 dB), 15 KHz (-60 dB)
FM: 12 KHz (-6 dB), 30 KHz (-60 dB)
SSB: 2.4 KHz (-6 dB), 3.6 KHz (-60 dB)
CW: 500 Hz (-6 dB), 750 Hz (-60 dB)
Image rejection: 10-160 m: 70 dB
6 m: 60 dB
Voltage: Mains, 90-264 VAC
Power consumption: RX: 70-80 VA @ 117 VAC
TX: Max 720 A @ 117 VAC
Impedance: HF: 50 ohms / SO-239 (16.7-150 ohms with tuner on)
6 m: 50 ohms, SO-239 (25-100 ohms with tuner on)
Dimensions (W*H*D): 462*135*389 mm (18.19*5.32*15.31")
Weight: 21 Kg (46.3 lbs)
Manufactured: 2009-20xx
Other: ±0.5ppm TXCO. 2*32-bit floating point IF-DSP. Twin RX
New price 2012 in Sweden: 54950:- SEK
Related documents: Brochure (10.2 MB)
User manual (10.3 MB)
CAT manual (249 KB)
DSP: TMS320C6727B
RF finals: VRF150
Modifications:
Options/Accessories:
DMU-2000
MD-200A8X
MTU-30/20
MTU-80/40
MTU-160
RF MU-2000
SM-5000
SP-2000
XF-126CN		 Data management unit
Desktop microphone
External µ-Tuning unit for 20 & 30 meters
External µ-Tuning unit for 40 & 80 meters
External µ-Tuning unit for 160 meters
RF µ-Tuning kit (Required to house MTU units)
Station monitor bandscope
External speaker with filters
300 Hz roofing filter





serie FTDX-5000

I ricetrasmettitori 200Watt HF/50MHz della serie FTDX-5000 si pongono al Top dello stato dell'arte nelle bande HF, con 2 ricevitori indipendenti, oltre a performanti ed uniche caratteristiche, ed una serie di accessori tali da assecondare anche le richieste del più esigente radioamatore

versioni:
FTDX-5000
SM-5000 monitor di stazione (opzionale),
300Hz roofing filter (opzionale),
±0.05ppm TCX0 (in dotazione)

FTDX-5000D
SM-5000 monitor di stazione (in dotazione),
300Hz roofing filter (opzionale),
±0.05ppm TCX0 (in dotazione)

FTDX-5000MP
SM-5000 monitor di stazione (in dotazione),
300Hz roofing filter (in dotazione),
±0.05ppm TCX0 (in dotazione)

2 ricevitori indipendenti
robusto e potente stadio finale con due FET VRF-150 in configurazione push-pull per erogare 200W ( 75 Watt in classe A)
tutte le versioni con alimentatore entrocontenuto
superba dinamica 3rd order e intercetta di terz'ordine IP3:
SSB (2.4KHz BW)
10KHz SEP.: 106dB, IP3 40dBm

CW (500Hz BW)
10 KHz SEP.: 112dB, IP3 40dBm,
2 KHz SEP.: 105dB, IP3 36Bm,
1 KHz SEP.: 99dB, IP3 25dBm,
*VFO-A/main receiver @14MHz, IPO1
  • Un potente circuito DSP custom-Yaesu da 32 Bit, basato sul TI TMS320C6727B (@300MHz) uno per VFO-A e VFO-B
  • super Roofing Filter: VFO A/main receiver, filtri selezionabili fra 300Hz (opzionali nelle versioni FTDX-5000 e FTDX-5000D), 600Hz, 3KHz (filtro a quarzo a 6 poli), 6KHz, 15KHz (4-poli MCF)
  • uscita IF: 9MHz dal VFO-A/main receiver
  • S-meter analogico di precisione e istantaneo tempo di reazione
  • semplice e pratico sistema di regolazioni indipendenti: MIC GAIN, RF-PWR, CW-PITCH, Keyer-speed, PROClevel, Vox-delay time, BK-in delay time
  • ulteriori 3 display EL (Electro Luminescence) per visualizzare le funzioni di sub-frequenza, onda grafica e funzioni menu
  • SM-5000 (opzionale, in dotazione con FTDX-5000MP) monitor di stazione band-scope dispone di un sistema di altoparlanti stereo per una superba qualità audio
  • DMU-2000 Data Management Unit (opzionale) per visualizzare su monitor esterno: Audio-scope, Oscilloscopio, Spectrum-scope, logging, controllo rotore d'antenna,
  • µ-Tuning (opzionali) completamente automatici per le bande dei 160m (unità A), 80/40m (unità B) e 30/20m (unità C)
  • Dimensioni e pesi:
    FTDX-5000 462 x 135 x 389 mm peso 21 Kg
    SM-5000 462 x 45 x 181 mm peso 3 Kg

    Il Prezzo di vendita quando sono stati lanciati era:
    FTDX-5000MP € 5.900,00
    FTDX-5000D € 5.500,00
    FTDX 5000 € 5.250,00
FT DX 5000MP Limited Brief Description
SM-5000 Station Monitor – Optional; 300 Hz Roofing Filter – Included; ±0.05ppm OCXO – Included.
FT DX 5000D Brief Description - NO LONGER IN PRODUCTION
SM-5000 Station Monitor – Included; 300 Hz Roofing Filter – Optional; ±0.5ppm TXCO – Included.
FT DX 5000 Brief Description - NO LONGER IN PRODUCTION
SM-5000 Station Monitor – Optional; 300 Hz Roofing Filter – Optional; ±0.5ppm TXCO – Included.
Rugged 200 Watt Output Power
The FTDX 5000MP robust and high-power Final Amplifier Stage incorporates two super reliable FET, VRF-150 (Drain-Source Voltage 170 V/Gate Source Voltage ±40 V, Total Device Dissipation 300 W) in a push-pull configuration, offers solid 200 W output (75 W Class A operation).
Internal Power Supply
The FT DX 5000MP has its own built-in power supply
TWO Totally Independent Receivers
All FT DX 5000 Transceivers include Two (2) Totally Independent Receivers to give you Performance and Flexibility previously only provided by much more expensive radios.
SUPERB 3rd-Order Dynamic Range & 3rd-Order Intercept Point (IP3)
SSB (2.4kHz BW)
10 kHz SEP.:106 dB, IP3 +40 dBm


CW (500Hz BW)
10 kHz SEP:112 dB, IP3 +40 dBm
2 kHz SEP. :105 dB, IP3 +36 dBm
1 kHz SEP. : 99 dB, IP3 +25 dBm


*VFO-A/Main Receiver @ 14 MHz, IPO1

Super Sharp “Roofing” Filters
Super sharp “Roofing” filters for VFO-A/Main Receiver.
Filters are Selectable between *300 Hz, 600 Hz, 3 kHz (6-pole crystal filter), 6 kHz, 15 kHz (4-pole MCF)

*300 Hz filter was optional for FTDX 5000 and FTDX 5000D. It is included in the FTDX 5000MP
High Performance Yaesu Custom-designed 32-bit Floating Point DSP
The legendary high performance Yaesu Custom-designed 32-bit Floating Point DSP based on the TI TMS320C6727B (@300 MHz), one EACH for VFO-A and VFO-B.
Variable CW Audio Peak Filter & High/Low-Cut Filtering
Variable CW Audio Peak Filter, and High/Low-Cut filtering created through the very latest in DSP technology.

- CW Width: 50/100/150/200/250/300/350/400/450/500 Hz

- CW Pitch Frequency: 300~1050 Hz (10 Hz Steps)
True Analog Meter Precision
Enjoy the same Huge Size Metering System as the FT DX 9000 series with True Analog Precision and Instant Reaction Time.
New Function Displays for Ease of Operation
Three Electro Luminescence clear Displays included for easier operation and control of the Sub-Frequency, Graphical Wave and Menu function.
IF Output Available
IF Output (9 MHz) from VFO-A/Main Receiver
Practical Level Indication System for Most Important Settings
The FTDX 5000MP provides loads of practical Level Indication that clearly show settings of Mic-Gain / RF Power / CW-Pitch / Keyer Speed / Processor Level / VOX Delay Time / Break-In Delay Time.

-They can be controlled ON/OFF independently!
Introducing the SM-5000 Station Monitor Bandscope
If you need a good Bandscope to enhance your operations, you are going to love our all-new SM-5000 matching station monitor. Included with the Bandscope is a complete, enhanced stereo speaker system with superb audio quality - the speakers are point at you instead of up into the air above the radio!
Other Valuable Options
- Yaesu Data Management Unit DMU-2000, and utilize its powerful Audio Scope, Oscilloscope, Spectrum Scope, logging, and Rotator Control capabilities using your own personally selected and purchased computer display monitor.
- Yaesu External Fully-Automatic Micro-Tuning Units. Three modes available: A (160 m Band), B (80 & 40 m Bands), C (30 & 20 m Bands)
