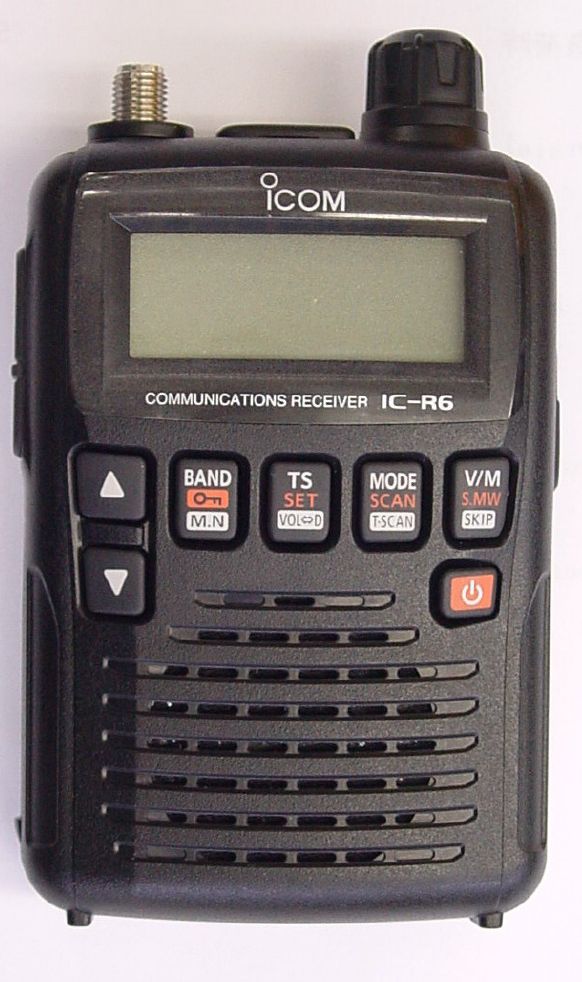

Il nuovo ricevitore ICOM
| Type | Portable Amateur HF/VHF/UHF Scanner / receiver |
|---|---|
| Frequency range |
|
| Frequency stability | ±1.0 ppm (+25°C) |
| Tuning steps | 5 / 6.25 / 8.33* / 9* / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 250 kHz |
| Receive modes |
|
| Filters | |
| Receiver system | Triple conversion superheterodyne |
| IF-frequencies | 1st: 266.7 MHz 2nd: 19.65 MHz (FM/AM), 19.95 MHz (W-FM) 3rd: 450 kHz (FM/AM), 750 kHz (W-FM) |
| Sensitivity | FM (1 kHz/3.5 kHz Dev.; 12 dB SINAD) 1.625–4.995 MHz 0.32 μV typical 5.000–29.995 MHz 0.25 μV typical 30.000–117.995 MHz 0.18 μV typical 118.000–246.995 MHz 0.18 μV typical 247.000–469.995 MHz 0.18 μV typical 470.000–832.995 MHz 0.32 μV typical 833.000–1029.995 MHz 0.28 μV typical 1030.000–1309.995 MHz 0.35 μV typical W-FM (1 kHz/52.5 kHz Dev.; 12 dB SINAD) 76.000–108.000 MHz 1.1 μV typical 175.000–221.995 MHz 1.1 μV typical 470.000–770.000 MHz 1.8 μV typical AM (1 kHz/30% MOD.; 10 dB S/N) 0.495–4.995 MHz 1.3 μV typical 5.000–29.995 MHz 0.89 μV typical 118.000–136.000 MHz 0.63 μV typical 222.000–246.995 MHz 0.63 μV typical 247.000–329.995 MHz 0.79 μV typical |
| Selectivity | AM/FM More than 12 kHz/–9 dB Less than 30 kHz/–60 dB W-FM More than 150 kHz/–6 dB |
| Image rejection | |
| Aerial | 50Ω, SMA |
| RF-output | |
| Audio output | 150mW at 10% distortion, 8 ohms |
| Memories | 1350 channels in 1 banks |
| Power requirements | 4.5-6.3 V DC or 2 R6/AA |
| Current drain |
|
| Dimensions | 58 × 86 × 30 mm (2.28 × 3.39 × 1.17 in) (excluding antenna) |
| Weight | 200 gr (7.1 oz) (with supplied antenna and batteries) |
| Manufactured | 2010 - 201x |
| Features | CTCSS & DTCS PC-programmable via USB Data-cloning Build-in battery charger Rotary frequency dial Ferrite bar antenna for MW Frequency shift for duplex transmissions |
| Remarks | *) Tuning steps 8.33 and 9 kHz selectable depending on operating frequency. New price in 2010: TBD |
