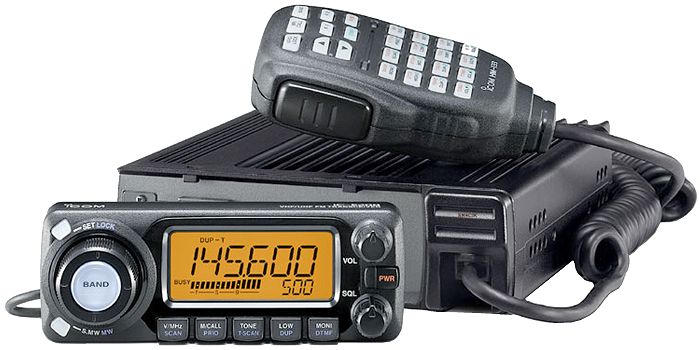

Veicolare duobanda VHF/UHF - ampia gamma di ricezione
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 118-174 / 230-550 / 810-1000 MHz |
| Mode: | TX: FM/NFM AM/FM/NFM |
| RF Power output: | Hi: 55/50 W Mid: 15/15 W Lo: 5/5 W |
| Receiver system: | N/A |
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | FM: 12 KHz (-6 dB), 30 KHz (-60 dB) NFM: 6 KHz (-6 dB), 20 KHz (-60 dB) |
| Image rejection: | Better than 60 dB |
| Voltage: | 13.8 VDC +/- 15% |
| Current drain: | RX: 0.8-1 A TX: Max 12 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 141*40*185 mm |
| Weight: | 1.2 Kg |
| Manufactured: | Japan, 2003-200x |
| Other: | 512 memories. CTCSS. 9K6 bd packet ready Multi color display New price 2003 in Sweden: 4800:- SEK New price 2008 in Sweden: 4800:- SEK |
 IC-E208_manuale_utente_italiano.pdf | 4342 kB |
| IC-E208 - user manual | 3289 kB |
