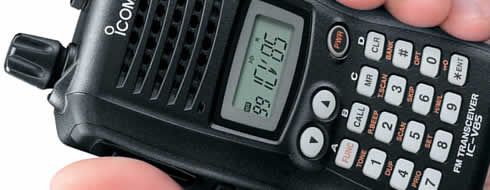

Portatile monobanda VHF - 7W di potenza
| Frequency range: | TX: 144-146 MHz (Europe) TX: 144-148 MHz (USA) RX: 136-174 MHz (5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 7 W Mid: 4 W Lo: 0.5 W |
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | >60 dB |
| Voltage: | 11 VDC (battery pack) |
| Current drain: | RX: 30-250 mA TX: Max 2.6 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 56*110*35 mm |
| Weight: | 310 gr (with BP-227) |
| Manufactured: | Japan, 2007-200x |
| Other: | 100 + 7 memories. CTCSS & DTCS. Alpha tags WX alert (US version only). New price 2008 in Sweden: 3250:- SEK |
 IC-V85_ham_brochure.pdf | 995 kB |
| IC-V85 - User Manual | 3768 kB |
