La prima radio commerciale all-mode nativa per i 70MHz
Sembra che la ICOM si sia decisa a realizzare un apparato multibanda che copre anche la gamma dei 4m. Per ora (agosto 2012) non si conosce ne’ la data di rilascio ne’ tantomeno il prezzo.

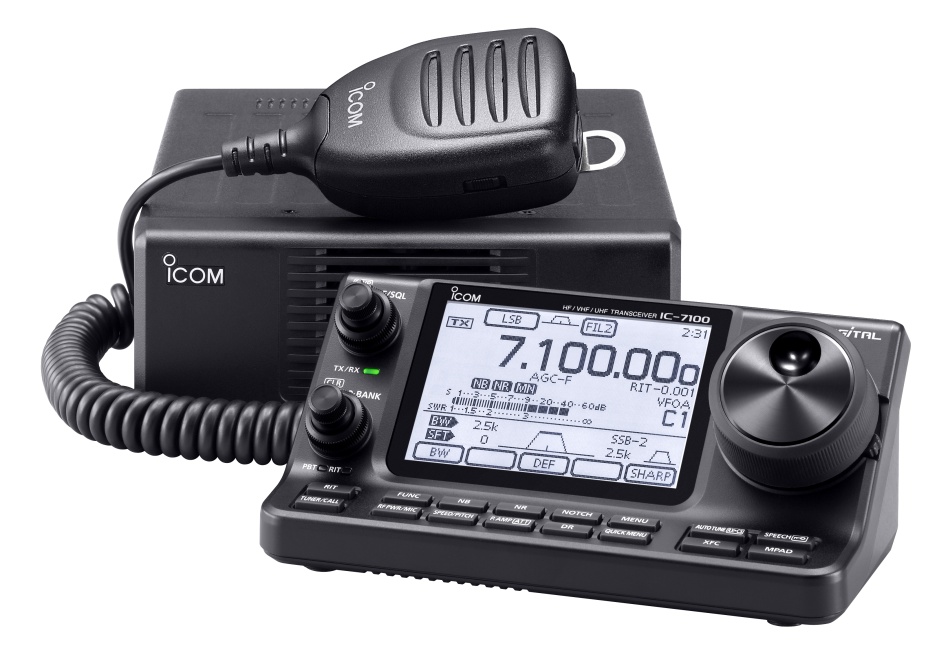

Le principali caratteristiche del nuovo IC-7100 dovrebbero essere:
- All mode incluso D-STAR (…)
- Frontalino separabile con touch screen (…)
- Potenza di uscita: HF (100W) – 50MHz (100W) – 70MHz (50W) – 144MHz (50W) – 430MHz (35W)
- Filtri DSP in media frequenza
- Stabilita’ in frequenza +- 0.5 ppm
_____________
| Type: | Amateur HF/VHF/UHF transceiver |
| Frequency range: | TX: 10-160 m + WARC / 6 m / 2 m / 70 cm (and 70 MHz in Europe) RX: 0.03-200 / 400-470 MHz |
| Mode: | TX: AM/FM/SSB/CW/RTTY/DV (D-Star) RX: AM/FM/WFM/SSB/CW/RTTY/DV (D-Star) |
| RF Power output: | FM/SSB/CW/RTTY: 2-100 / 2-100 / 2-50 / 1-35 W / (2-50 W on 70 MHz) AM: 1-40 W (HF) |
| Receiver system: | Double conversion superheterodyne (WFM) 1st IF: 134.732 MHz 2nd IF: 10.7 MHz Triple conversion superheterodyne (AM/FM/SSB/CW/RTTY) 1st IF: 124.487 MHz 2nd IF: 455 KHz 3rd IF: 36 KHz |
| Sensitivity: | AM (10 dB S/N) 0.5-1.8 MHz: 13 uV 1.8-29.9 MHz: 2 uV 50-54 MHz: 1 uV 144/440 MHz: 1 uV FM (12 dB SINAD) WFM (12 dB SINAD) SSB/CW/RTTY (10 dB S/N) DV (D-Star) |
| Selectivity: | AM (BW=6 KHz) 6 KHz (-6 dB), 15 KHz (-60 dB) FM (BW=15 KHz) SSB (BW=2.4 KHz, sharp) CW (BW=500 Hz, sharp) RTTY (BW=350 Hz) |
| Image rejection: | HF: 70 dB 6 m/2 m/70 cm: 65 dB |
| Voltage: | 13.8 VDC +/-15% |
| Current drain: | RX: 1.2-1.5 A TX: Max 22 A |
| Impedance: | 50 ohms, 2*SO-239 |
| Dimensions (W*H*D): | RF unit: 167*58*225 mm Controller: 165*64*78 mm |
| Weight: | RF unit: 2.3 Kg Controller: 500 gr |
| Manufactured: | Japan, 2012-201x |
| Other: |
D-Star built-in. Dot-matrix touch-screen controller. 495+10 memoriers. IF-DSP |
 ic7100_preinfo.pdf | 724 kB |
