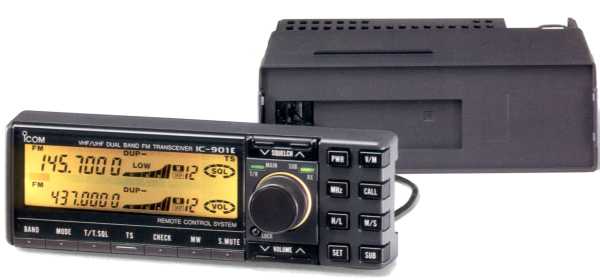

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz 10 m (UX-19E), 6 m (UX-59A), 23 cm (UX-129E), 2m SSB/CW (UX-S92E) and MW/76-950 MHz RX (UX-R91A) options |
| Mode: | FM (Max 16 KHz BW) |
| RF Power output: | Hi: 50/35 W Lo: 5/5 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: 17.2 MHz (VHF), 30.875 MHz (UHF) - No options installed 2nd IF: 455 KHz |
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | >60 dB |
| Voltage: | 11-16 VDC |
| Current drain: | RX: 0.85-1.4 A TX: Max 12 A |
| Impedance: | 50 ohms, SO-239 + N |
| Dimensions (W*H*D): | 150*50*191 mm |
| Weight: | 1.6 Kg |
| Manufactured: | Japan, 1989-1990 (Discontinued) |
| Other: | CTCSS/PL and DTMF options. Twin RX New price 1990 in sweden: 8400:- SEK |
Icom IC-901 Service Manual
CLICCA QUI PER IL MANUALE DI SERVIZIO
 IC-901ae_user_manual.pdf | 6754 kB |
| icom-ic-901a-e-service-manual.pdf | 9483 kB |
