Di seguito le specifiche di questo glorioso "Mostro Kenwood":
Qui è possibile scaricare un semplice progetto da me realizzato per avviare in maniera soft il "prezioso" Kenwood. L'intento è quello di allungarne la vita, in particolare alle costose valvole.
Qui la modifica
73 - ik4acq

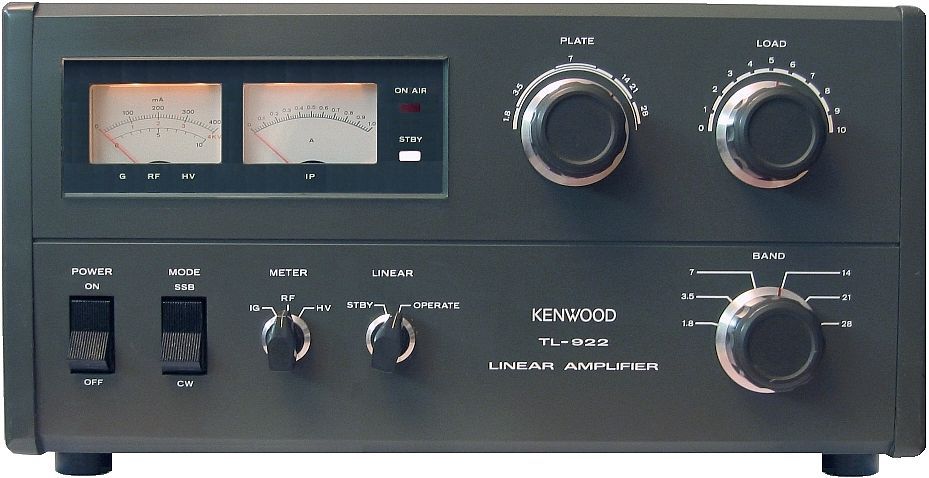

The Kenwood TL-922A HF linear amp is designed to provide the maximum legal power, utilizing two 3-500Z high performance transmitting tubes. The amp features two meters for maximum operating convenience. Power is 2000W PEP SSB, 1000W DC CW/RTTY input. Drive power is 80 or more watts. (Not for QSK). The TL-922A covers 160, 80, 40, 20 and 15 meters.
Power requirement: 120/220V 28A 50/60Hz type. 220/240V 14A 50/60 Hz type. 15.4 x 7.5 x 16 inches 68.3 Lbs. (2390x190x407mm 31 kg).
| Type: | All-mode HF linear amplifier |
| Frequency range: | 10-160 m |
| Maximum power output: | 1 KW |
| Drive power: | 80 W |
| Voltage: | Mains |
| Current drain: | ? A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 390*180*383 mm |
| Weight: | 31 Kg |
| Manufactured: | Japan, 1978-19xx (Discontinued) |
| Other: | 2 x 3-500Z |
